Zakhar
May 14, 2022, 1:15pm
#1
Hello! Before creator 3.0 we were using this tutorial to optimise all scroll views in our projects:
Cocos Creator ScrollView Performance Optimization
Note: This article is based on Cocos Creator 2.1.2 version
Note: You can reference to this demo project
Introduction and why are there performance problems
The ScrollView component of Cocos Creator is a common component in game development. It is often used in game interfaces, like ranking interface, task list, package system and other modules. However, it can suffer from performance issues. When needing to display many items, performance…
In version 3.5.0 when i set 0 opacity to a node draw calls do not drop down.
this.node.getComponent(UIOpacity)!.opacity = 0
This way is not good:
this.node.active = false
because it freezes a game
Is there a new good way to optimise a scrollview?
1 Like
Turning off the node is freezing the game? i dont’ understand that.
You could try to disable the scrollview component.
node.getComponent(ScrollView).enabled = false
im’ more confused now. So based on the documentation opacity =0 should work but you are not seeing the draw calls go down. Now you tried node.active=false but that is a huge performance hit? If the node has a sprite component associated, you can disable that so the rendering stops// one more test just like node.active = false.
I set enabled component to false to optimize.
Example:
update (dt) {
var viewRect = cc.rect(- this.view.width / 2, - this.content.y - this.view.height, this.view.width, this.view.height);
for (let i = 0; i < this.content.children.length; i++) {
const node = this.content.children[i];
if (viewRect.intersects(node.getBoundingBox())) {
node.getComponent(cc.Sprite).enabled = true;
node.getChildByName('text').getComponent(cc.Label).enabled = true;
}
else {
node.getComponent(cc.Sprite).enabled = false;
node.getChildByName('text').getComponent(cc.Label).enabled = false;
}
}
}
Ronsku
May 27, 2022, 3:18pm
#6
I have a ticket on github regarding CC3 and opacity = 0 that I really liked in CC2 where it didn’t render and cause drawcalls.
opened 11:52AM - 24 May 22 UTC
Optimization
Module: 2D
### Cocos Creator version
3.5.0
### System information
Windows 11, Chrome
##… # Issue description
In CC2 when you put something to opacity = 0 it didn't cause a drawcall. In CC3 this is not the case. It only works by disabling the node. Using opacity is in many times more comfortable than disabling a node. Also having a node disabled by default won't run the attached components.
![image](https://user-images.githubusercontent.com/7983358/170027651-e5e5c965-4cc9-4577-9f35-6b04aae23775.png)

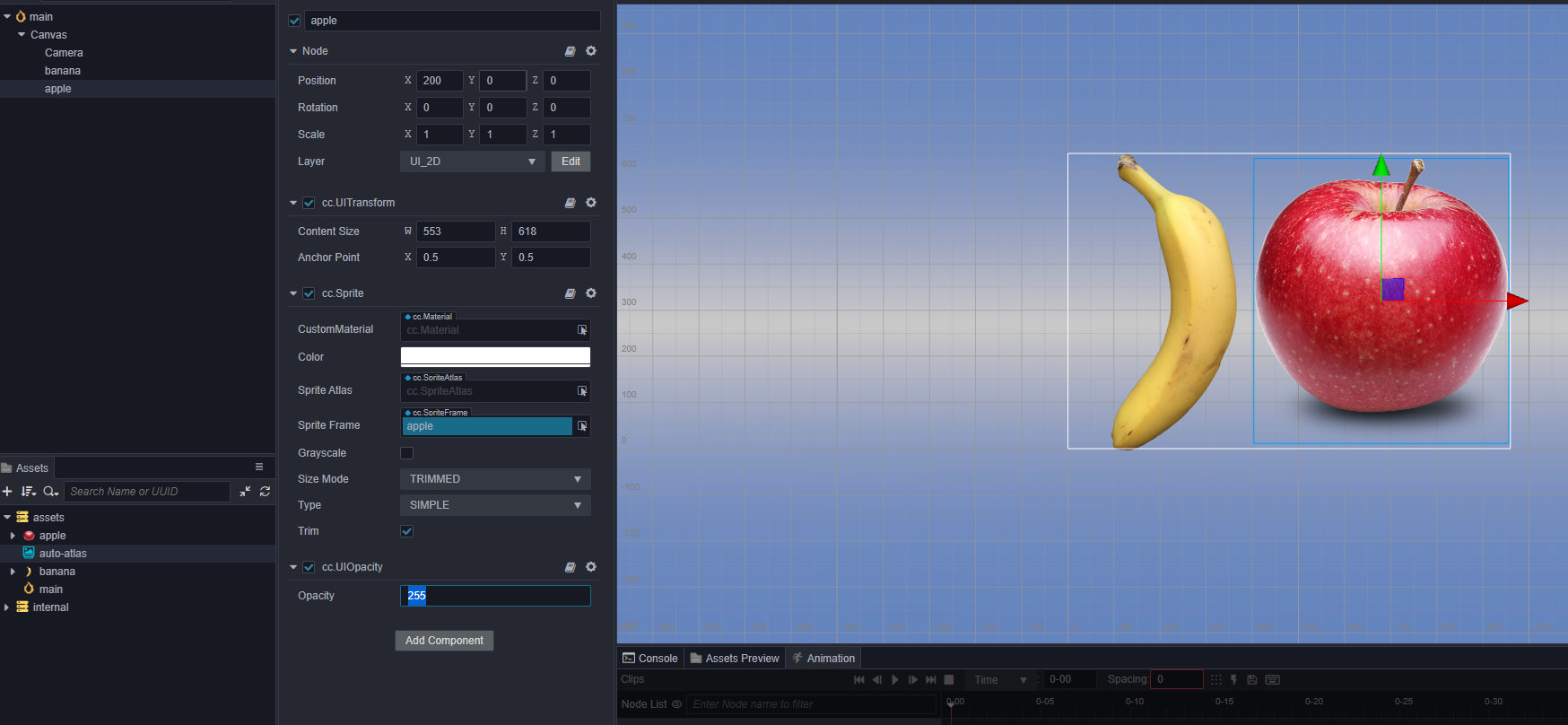

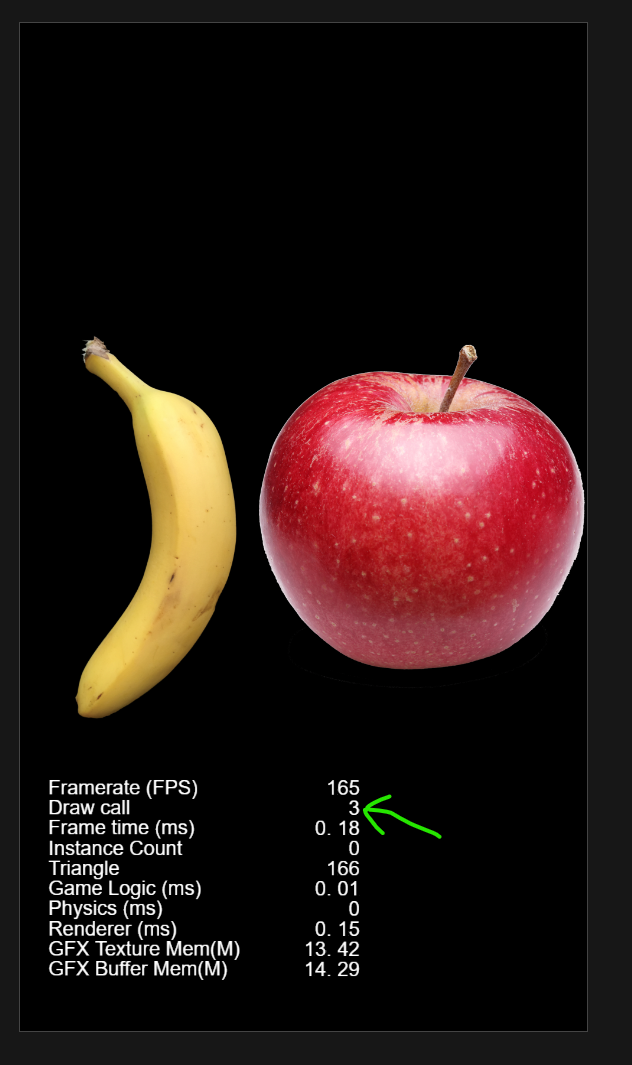

Here you see a 255 opacity apple and a banana. This causes 3 drawcalls (since the drawcall text output itself is a drawcall)
![image](https://user-images.githubusercontent.com/7983358/170027823-3381608a-40c6-4020-bf4c-12beb5ee4517.png)

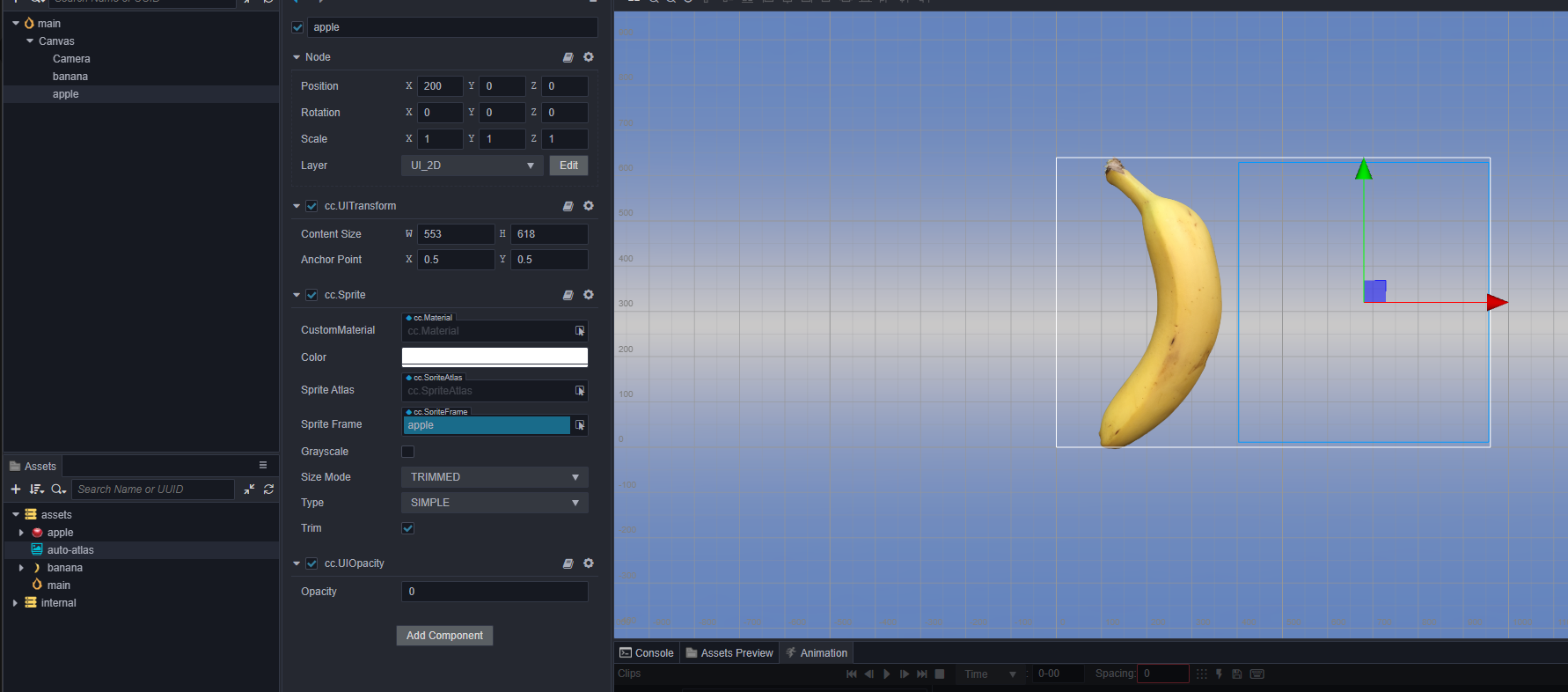

Hiding the node with opacity = 0
![image](https://user-images.githubusercontent.com/7983358/170027893-950acf27-b306-479e-b8c1-db978c4d7474.png)

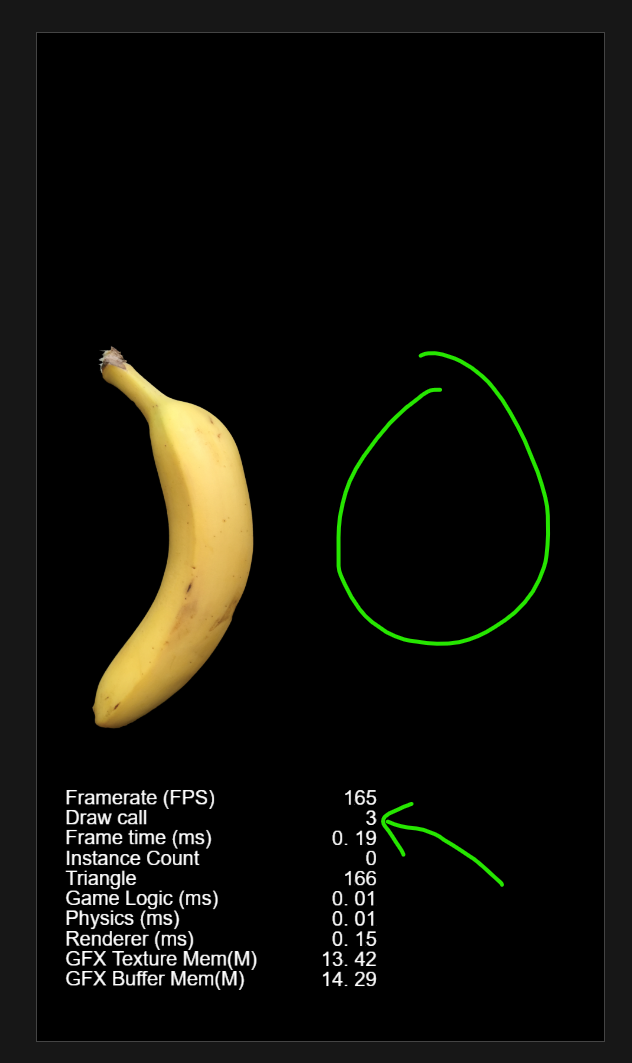

Does not remove the drawcall like it did in CC2.
![image](https://user-images.githubusercontent.com/7983358/170027978-a4e6bc59-4c7c-46c8-8f11-fadd00edb7f1.png)
### Relevant error log output
_No response_
### Steps to reproduce
Place opacity = 0 on a node containing a sprite or something that causes a drawcall, it will be invisible but still cause a drawcall that reduces the performance.
### Minimal reproduction project
Demo from above description
[drawcall-test.zip](https://github.com/cocos/cocos-engine/files/8762367/drawcall-test.zip)
1 Like
Zakhar
June 16, 2022, 4:17pm
#8
Interesting
I thought if i change the layer of a node to an other layer, the node will not be rendered. It will not.
But draws calls will not drop down.
A camera of a canvas has UI_2D layer and a node too.
Then i change the layer of the node to an other one(e.g. DEFAULT)
And nothing happed. Draw calls do not drop down.
But this idea works good in v2.4.8.
Yes, if I set active false then true it makes a huge freezing.
I also used opacity 0 for all objects. But it doesn’t drop draw calls.
